BL2SP2BL(Blender connect Substance Painter)

by PJ PENG in Scripts and Addons

Intro:

This Plugin connect the Blender and Substance Painter,let the Blender and Substance Painter workflow is quickly and efficiency!

Plugin include two part:

A Part :"Bl2SP" install to the BLender 2.80,let the Blender connnect the Substance Painter.

B Part:"SP2Blender" install to the Substance Painter Let the Substance Painter connect the Blender

show:

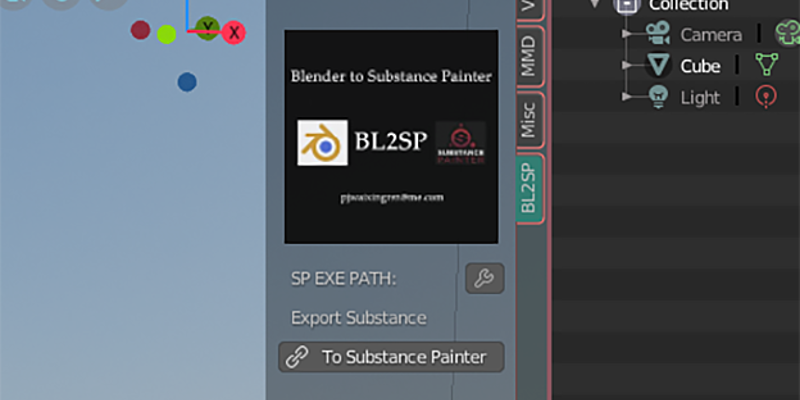

                                                             UI-BL2SP

                                                              UI-SP2Blender

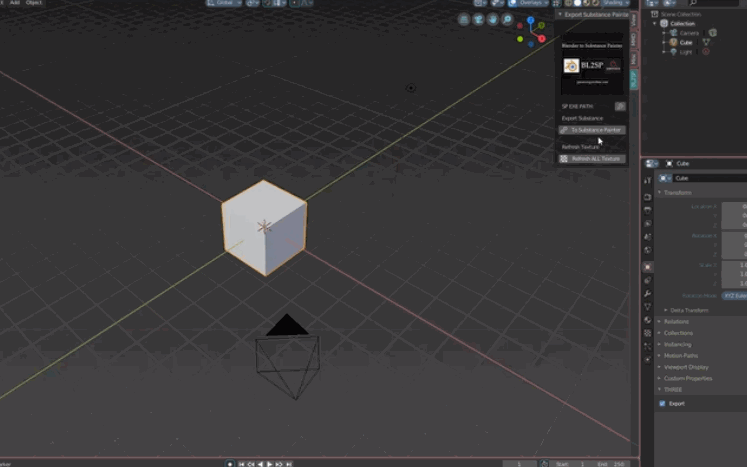

                                                         Export MESH TO SP

                                                                 Mat Sync

                                                               Painter Sync

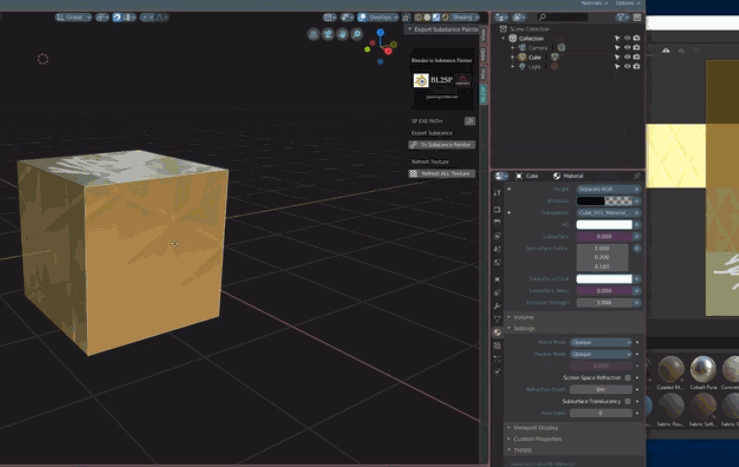

                                                                 MESH Change

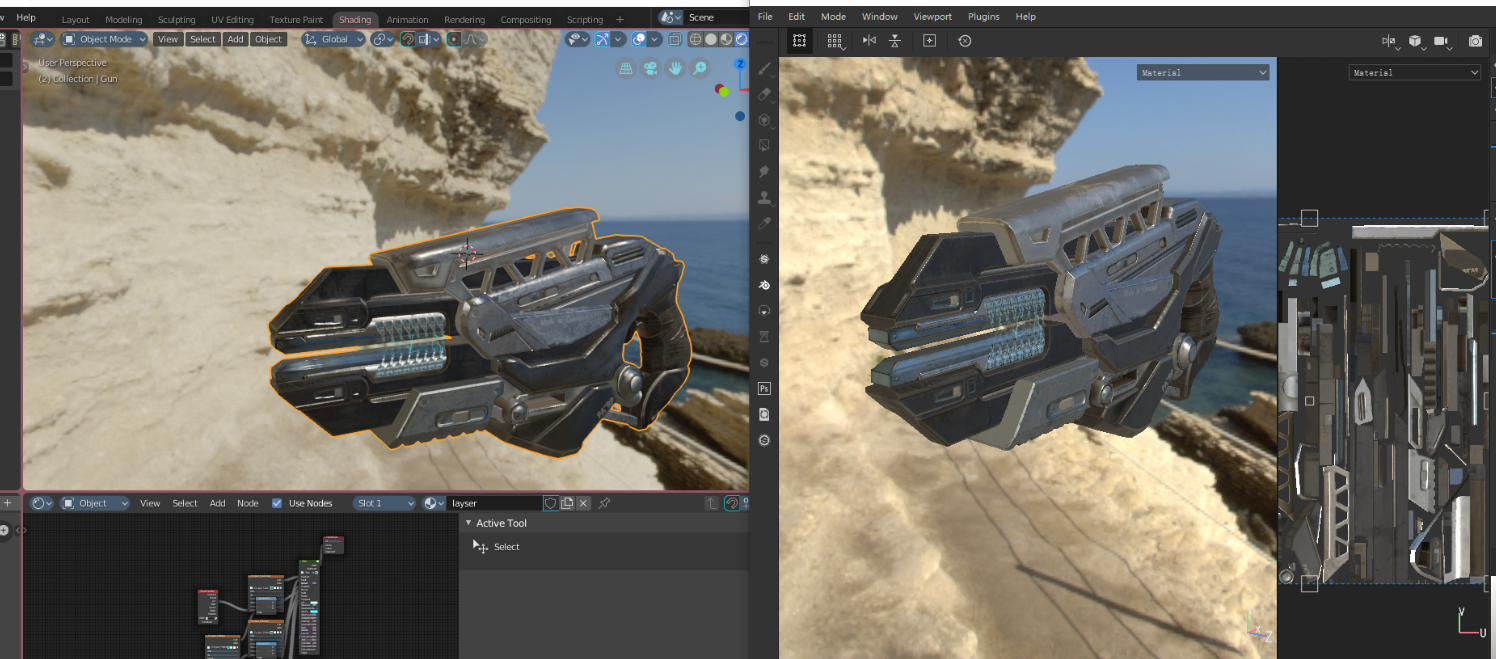

                                                              HDRI connect

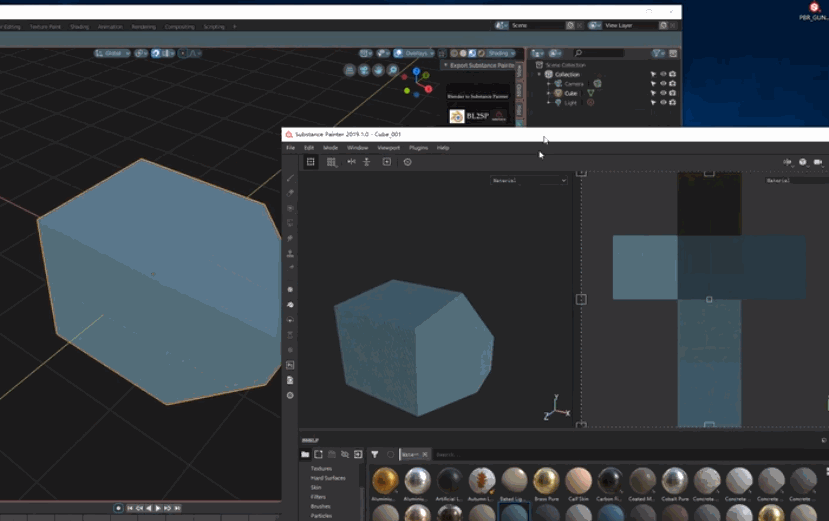

                                                 BL file Connect SP file Forever

Install:

****Now BL2SP2BL just support the Win platform!****

"Bl2SP"-now only support Blender 2.80!

1."File" -"User Preferences"-"Add-ons"-"Install Add-on from File"

2.select the "BL2SP_2.8.zip" install

3.select the "User Preferences"-"Add-ons"-"Save User Settings"

4.3D-views,Press "N" key ,will show the BL2SP.

5.BL2SP select "SP EXE PATH" find you "Substance Painter.exe" Path

6.OK

"SP2Blender"-support Substance Painter 2018.1.0+

1.Copy the "SP2Blender" input you SP plugin Folder(put it "Plugins"-"Plugins Folder").

2.SP "Plugins"-"Reload Plugins Folder"

3. "Plugins"-"SP2Blender"-"configure"-"Set Path" to find you "blender.exe" Path

4.OK!


UI interface Intro:

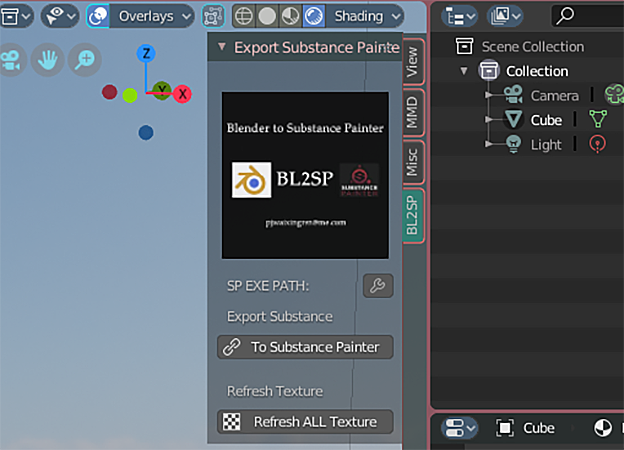

BL2SP:

SP EXE PATH:Set you Substance Painter Execute file Path.

To Substance Painter:Export the Blender File to SP.

Refresh ALL Texture:Change ALL Mat Blend Mode to "Opaque".

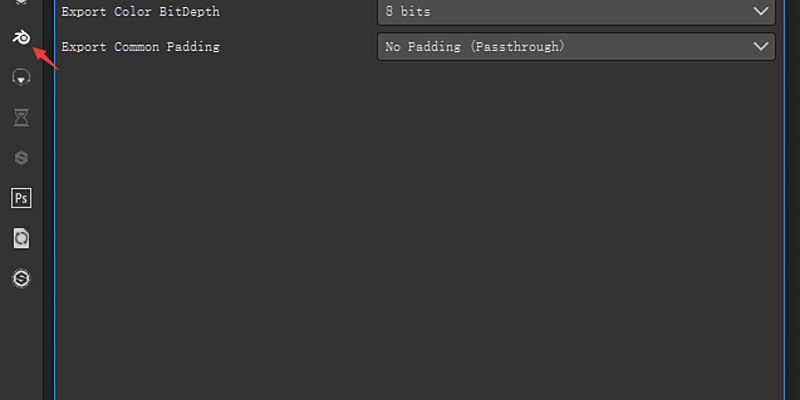

SP2Blender:

a.configure Panel

Set Path:Set you Blender  Execute file Path.

Open SP2Blender Panel:Open the SP2Blender Panel UI.

b.SP2Blender Panel

Export Textures Preset:Set Export Texture Preset,You can make youself Preset File.

Export Textrue Format:Set Export Texture file Format.

Export Texture Size:Set Export Texture Size.

Export Color BitDepth:Set Export Color BitDepath.

Export Common Padding:Set Export Common Padding.


Note:

1.Only Support Win Platform

2.Don`t Support the Steam Version,Need Standalone Version.

3.Automatic Save the SP file and export the Texture at the Blender File same Folder


Contact:

My Artstation:https://www.artstation.com/pjwaixingren

My Gumroad:https://gumroad.com/pjwaixingren

My Email:[email protected]


THANKS:

Cupck,Kodoku_Hate
