A Blender addon that creates frames with mullions and panels with 1 click!!

And if not enough it also add Cycles / Evee materials to it.

It can be applied to every polygon object and it works on all polygons inside it.

It’s possible also to apply it only to selected polygons in Edit Mode.

Features

Vers. 1.1.0 (for Blender 4.0 and above)

• switched compatibility to Blender 4.0 and above

Vers. 1.0.1 (for Blender 3.0 and above)

• fixed elements material creation

Vers. 1.0.0

• Choose Size, Depth and Offset of elements.
• Options to exclude frame, mullions or panels from creation.
• Apply Bevel to all elements at once, or on them singularly.
• Apply materials and option to do not it.
• Option to reuse previously applied materials or if you prefer to create new materials every time.
• Option to preserve original geometry.
• All features are parametric, so you can change them later in modifier properties.
• You can work as in Object than in Edit mode.

Examples

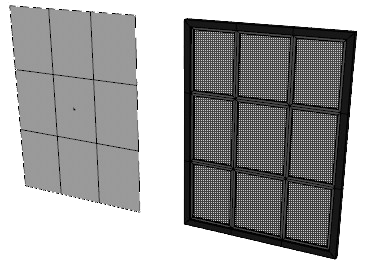

Simple frame

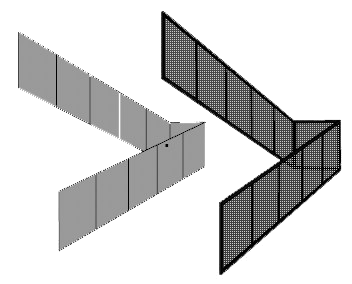

Non planar geometry

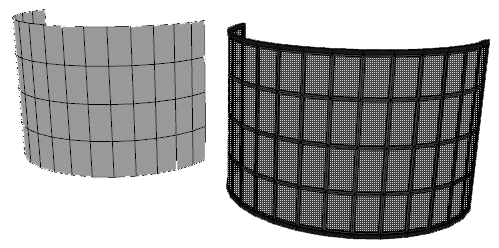

complex meshes

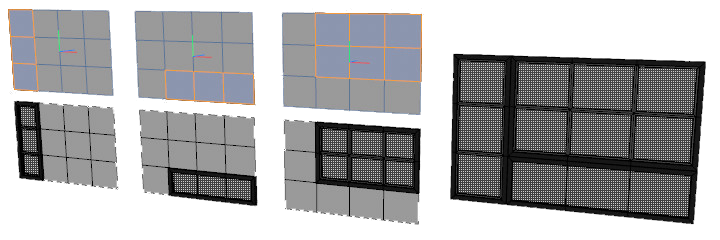

Example steps in Edit mode

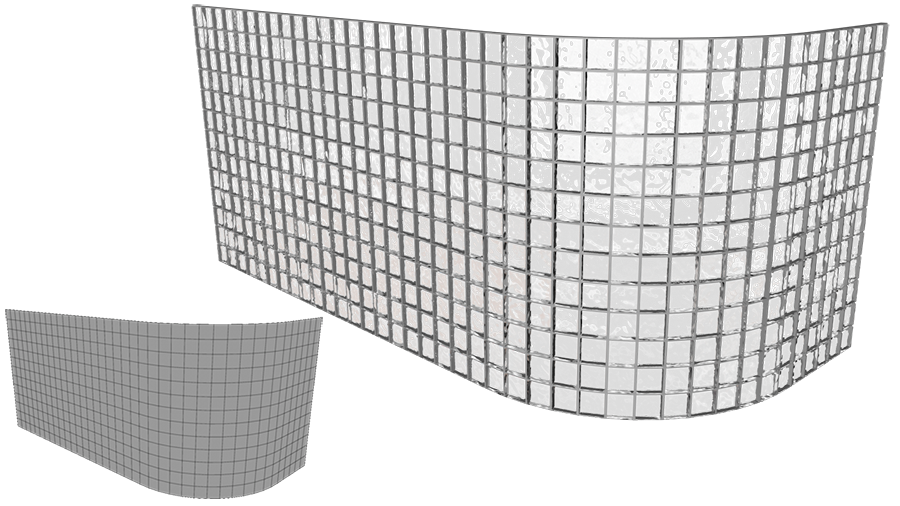

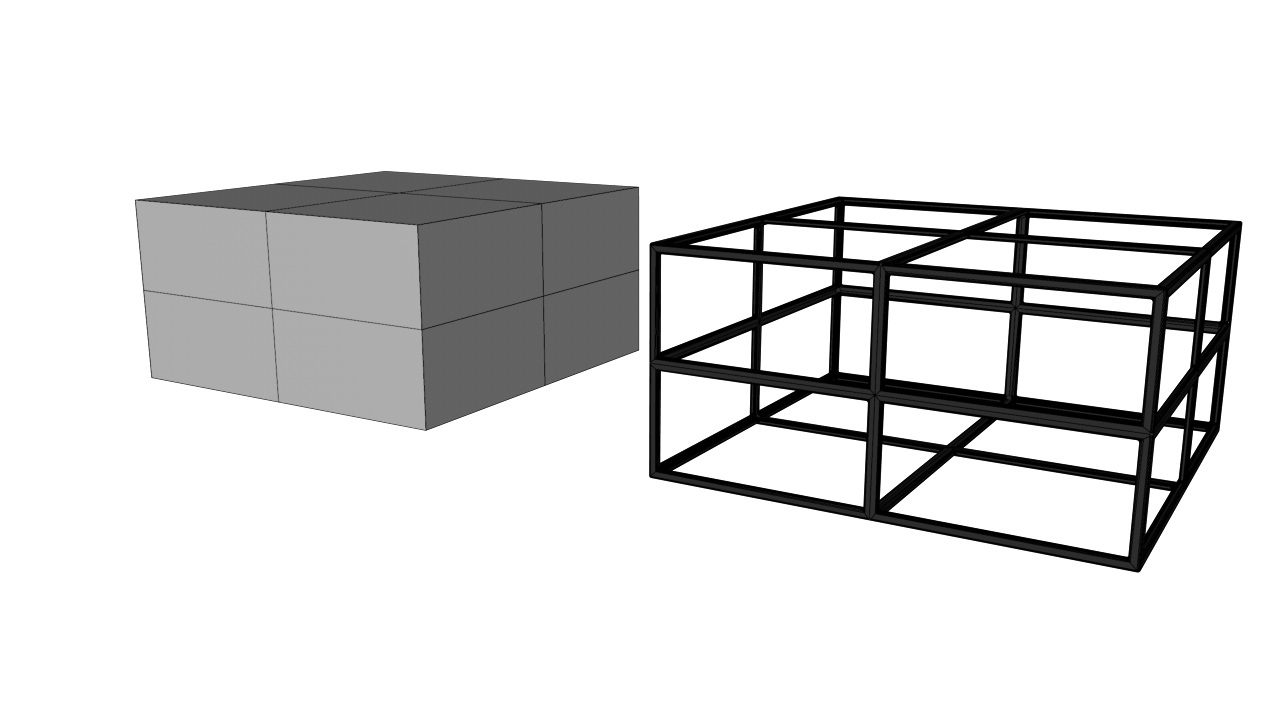

other applications

Brick Wall Example

Usage Example Videos

Brick wall example

Shelf Example

Updates

For all news and updates you can follow me on Twitter or on Discord
